Grundfos Nkg Bare Shaft 300-250-350/306 Water Pump Bare Shaft Pump for Industrial Use

Name: Grundfos Nkg Bare Shaft 300250350306 Water Pump Bare Shaft Pump for Industrial Use
Brand: Grundfos
Price: 1 USD

Buy cheap Grundfos Nkg Bare Shaft 300-250-350/306 Water Pump Bare Shaft Pump for Industrial Use product

Brand Name : Grundfos

Model Number : Nkg

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Delivery Time : 5-8 weeks

Packaging Details : Standard Export Plywood Case or Carton

Number of Poles : 6

Actual Impeller Diameter : 306mm

Pump Data Is Based on The Pump Speed on : 1450 Revolutions Per Minute

Rated Flow Rate : 32.3 M³/H

Contact Now

NKG 300 - 250 - 350/306 AY1F2AESBQQEXW5
Serial Number 98495346

Applicable for
1.Commercial heating
2.Commercial air - conditioning
3.Commercial water pressure boosting
4.District heating
5.Heating
6.Desalination
7.Surface water intake
8.Municipal water transmission and distribution
9.Irrigation

The bare - shaft pump complies with ISO 2858

NKG 300 - 250 - 350/306 AY1F2AESBQQEXW5

The non - self - priming single - stage volute centrifugal pump is designed in accordance with the ISO 5199 standard, and its dimensions and rated performance comply with the ISO 2858 standard. The flanges are of PN 16 type, and their dimensions conform to the EN 1092 - 2 standard. The pump has an axial suction port, a radial discharge port, and a horizontal shaft. It adopts a back - pull - out design, enabling maintenance personnel to disassemble the coupling, bearing bracket, and impeller without loosening the motor, pump casing, and pipes.

Grundfos Nkg Bare Shaft 300-250-350/306 Water Pump Bare Shaft Pump for Industrial Use

Controller

Frequency converter: None
Pressure sensor: N

Liquid

Liquid being transported: Water
Liquid temperature range: - 25.. 120 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology

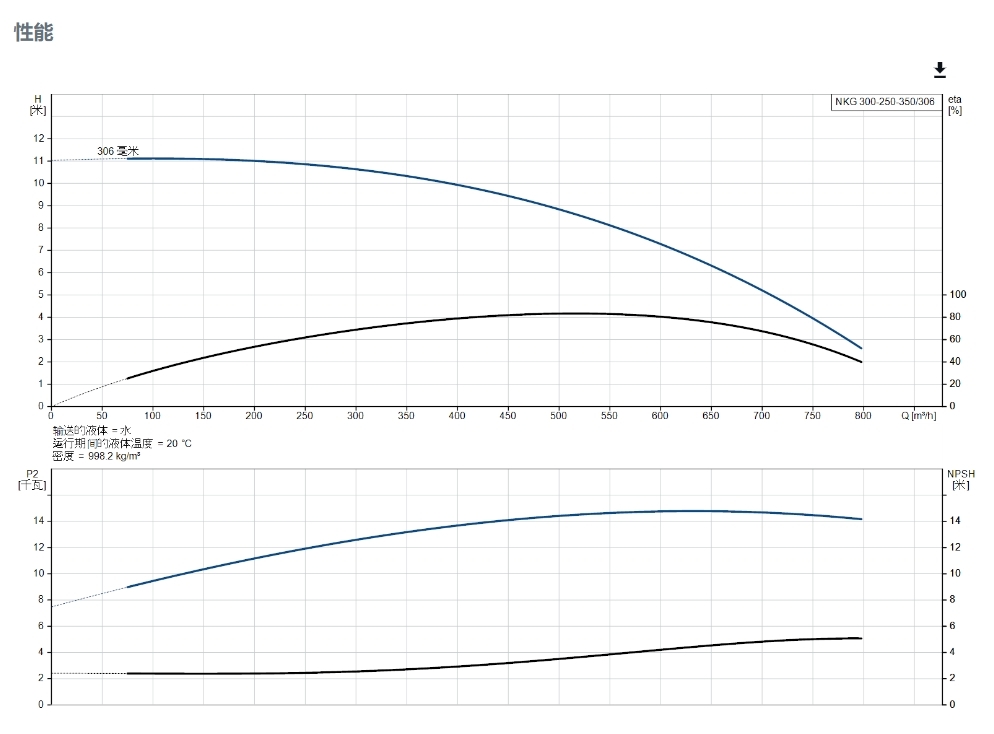

Pump speed based on which pump data is obtained: 970 revolutions per minute
Rated flow rate: 518 m³/h
Pump with motor: N
Rated head: 8.6 meters
Actual impeller diameter: 306 mm
Nominal impeller diameter: 350 mm
Type of impeller: Standard
Main shaft seal: BQQE
Shaft seal code: BQQE
Mechanical seal type: Single
Curve tolerance: ISO9906:2012 3B
Bearing design: Standard
n_min: 500 revolutions per minute
n: 3700 revolutions per minute

Materials

Pump casing: Cast iron

Impeller:
Cast iron
EN - GJL - 200
ASTM class 30
Internal pump house coating: CED
Shaft:
Stainless steel
EN 1.4301
AISI 304

Installation

Maximum operating pressure: 16 bar
Pipe connection standard: EN 1092 - 2
Type of inlet connection: DIN
Type of outlet connection: DIN
Inlet size: DN 300
Outlet size: DN 250
Pressure rating for pipe connection: PN 16
Grouting (Yes/No): N

Others

Minimum efficiency index, MEI ≥: 0.70
Net weight: 548 kg
Gross weight: 625 kg
Transport volume: 1.51 m³
